PP Grille Mesh Uniaxial Plastic Geogrid/ PE One-way Geogrid For Protective Soil

Uniaxial Geogrid

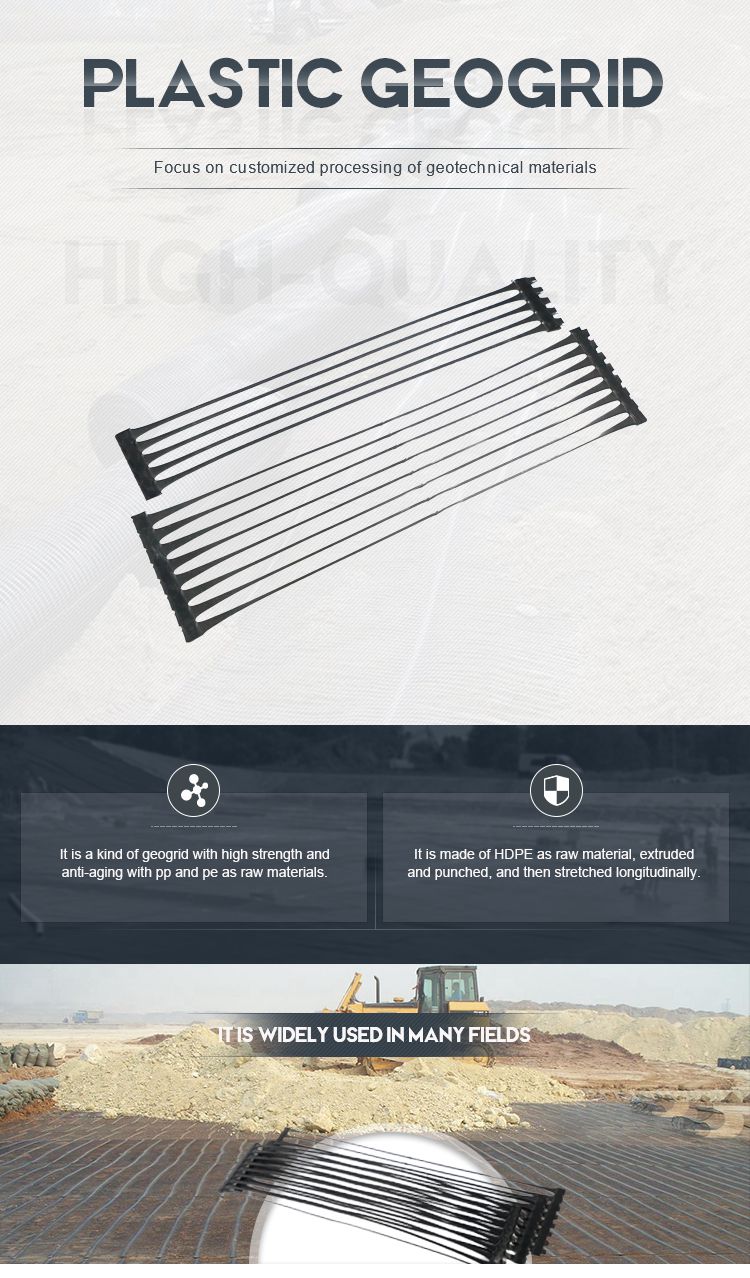

Geogrid is made by polypropylene(PP) as the raw material,It is produced through the process of extruding, punching, heating, longitudinal and transverse stretching.It can be used to enhancement of permanent bearable soft including highway.
•High Tear Strength
•Flexible and durable
•Excellent Creep Resistance
•UV resistance
•Cost effective
•High chemical and biological resistance
•High Tensile Strength and Low Elgongation
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation
Uniaxial geogrids mainighway, railway, slopeprotecting projects, retaining wall, dam to strengthen land loadingcapacity and extend its service life. Featurers in reducing area.project cost and maintainance cost, convenient to construct.
1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;
2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
uniaxial geogrid（PP）Technical Parameter (GB standard)
Item
Specification
Type
TGDG
35
TGDG
50
TGDG
80
TGDG110
TGDG
120
TGDG150
TGD200
TGDG260
TGDG
300
Tensile Strength≥（KN/M）
35
50
80
110
120
150
200
260
300
Maximum elongation≤（%）
10
Tensile strength at 2% elongation≥（KN/M）
10
12
26
32
36
42
56
94
108
Tensile strength at 5% elongation≥（KN/M）
22
28
48
64
72
84
112
185
213
uniaxial geogrid（PE）Technical Parameter (GB standard)
Item
Specification
Type
TGDG
50
TGDG
80
TGDG100
TGDG110
TGDG120
TGDG
150
TGDG
170
TGDG
200
TGDG
220
Tensile Strength≥（KN/M）
50
80
100
110
120
150
170
200
220
Maximum elongation≤（%）
10
Tensile strength at 2% elongation≥（KN/M）
12
21
26
29
38
41
52.5
60
64
Tensile strength at 5% elongation≥（KN/M）
23
40
50
55
75.5
81
103
110
127

Description:

The uniaxial geogrid can used in all kinds of soft soil foundation reinforcement treatment, strengthen the embankment to improve bearing capacity of the subgrade as well as the long-term stress state of retaining wall, slope, dam, bridge abutment reinforcement, improve project quality, prolong the service life of the project.
