Manufacturer Price Polypropylene Woven Geotexile Sludge Dewatering Geotube
Advantage:
1. Resistant to moisture.
2. Chemical resistance.
3. Anti-biodegradation and animal destruction.
4. High temperature resistance.
5. UV resistance.
Description:
The Geotextile Tube Bag dehydration technology is an effective technology and a solution that has been proven safe for dehydration by many research centers around the world. It is made of high-performance, special polypropylene monofilament, flat yarn or split film yarn for cloth processing and special sewing.
Geotubes have different levels of strength and permeability, high UV resistance and durability such as sea water and microbial erosion.
It can be applied to many water conservancy and ocean engineering, such as: bank protection, breakwater, wave breakwater, river surge regulation, tubular containment structure, etc.
At the same time, it is used in the dehydration treatment of industrial waste, sludge treatment, coal mine and agricultural waste.
It can be applied to many water conservancy and ocean engineering, such as: bank protection, breakwater, wave breakwater, river surge regulation, tubular containment structure, etc.
At the same time, it is used in the dehydration treatment of industrial waste, sludge treatment, coal mine and agricultural waste.
| Item | Unit | Technical Data | ||||||
| Materials | Polypropylene with black or san color | |||||||
| Spec. | HT50 | HT70 | HT90 | HT105 | HT120 | HT200 | ||
| Tensile strength | MD | KN/M | 50 | 70 | 90 | 105 | 120 | 200 |
| CD | KN/M | 50 | 70 | 90 | 105 | 120 | 200 | |
| Elongation | MD/CD | % | 10,11,12,13,15 | |||||
| Opening size O90 | mm | 0.05-0.9 or as customized | ||||||
| Length | m | As customized | ||||||
| Circumference | m | As customized | ||||||
1. Superior Durability
2. High Permeability
3. UV Resistance
4. High Tensile Strength
2. High Permeability
3. UV Resistance
4. High Tensile Strength
1. High strength, low deformation
2. Durability: steady property, not easy to resolved, air slaked and can keep the original property long term
3. Anti-erosion: anti-acid, anti-alkali, resists insects and mould
4. Permeability: could control the sieve size to retain certain permeability
5. Effective high volume containment
6. Efficient dewatering and volume reduction
7. Cost effective
8. No special equipment required

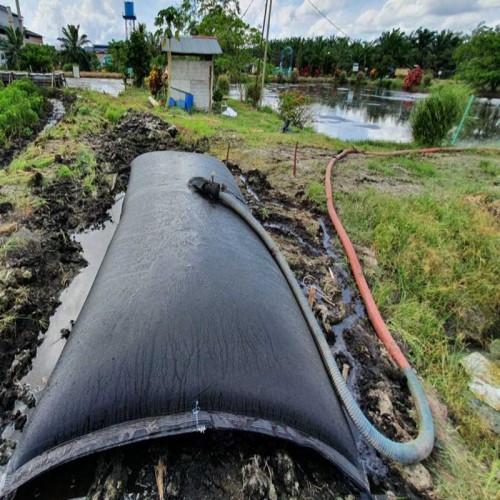

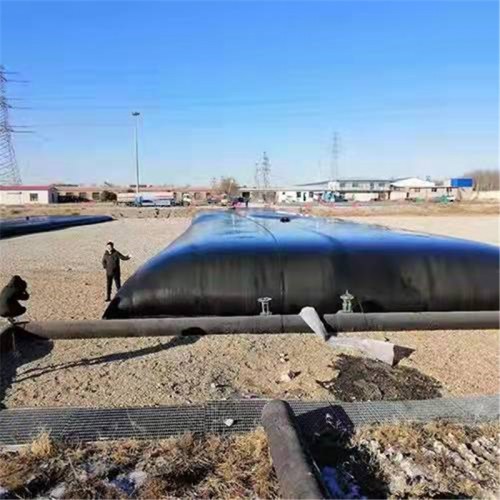

Sludge Treatment
The volume of sludge can be reduced by more than 90%, and it contains a higher proportion of solid content, making it easier to remove and process.
The volume of sludge can be reduced by more than 90%, and it contains a higher proportion of solid content, making it easier to remove and process.

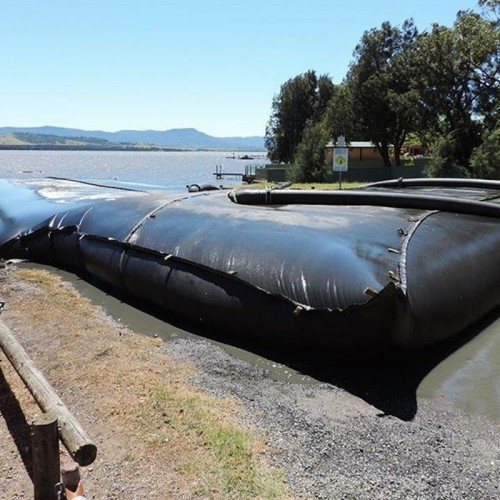

Revetment, Breakwater Core
The embankment core filling geotechnical pipe bag breakwater is a breakwater made of new materials. It forms a kind of breakwater by filling the geotechnical pipe bag with sea sand. Not only saves the construction cost of the breakwater, but also makes better use of environmental resources, and can well meet the construction and functional requirements of the breakwater.
The embankment core filling geotechnical pipe bag breakwater is a breakwater made of new materials. It forms a kind of breakwater by filling the geotechnical pipe bag with sea sand. Not only saves the construction cost of the breakwater, but also makes better use of environmental resources, and can well meet the construction and functional requirements of the breakwater.
Light Industry, Agriculture and Aquaculture
Geotube bag dehydration technology reduces the water content in the filtration process, simplifies the water recycling process, and intercepts more than 90% of the suspended solid particles. It is an ideal choice for cleaning sludge storage tanks, clarification tanks and filtering waste projects.
Geotube bag dehydration technology reduces the water content in the filtration process, simplifies the water recycling process, and intercepts more than 90% of the suspended solid particles. It is an ideal choice for cleaning sludge storage tanks, clarification tanks and filtering waste projects.
