Geogrid Mesh 120kn/M Biaxial Tensile Plastic Geogrid For Asphalt Suppliers
FEATURES AND BENEFITES :
High tensile strength in longitudinal and transverse directions.
As a result when a vertical load is applied the aggregate is restrained by the ribs reducing deformation ( Lateral Restraint)
Distribution of loads and therefore reduction in stress concentration over the soil
Help lock aggregate , increasing its shear resistance .
Decrease in long term deformation ( creep )Increase in load distribution .
( Bearing Capacity Increase )
Description:

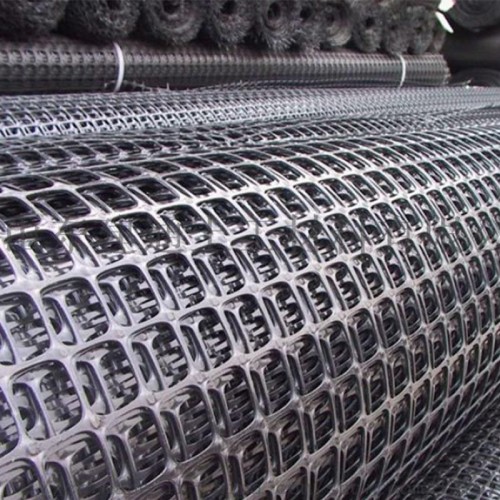

Plastic geogrid is a square or rectangular polymer mesh formed by stretching, punching holes in an extruded polymer sheet (mostly polypropylene or high-density polyethylene), and then applying directional stretching under heated conditions.
Biaxial plastic geogrids have high tensile strength in both the longitudinal and transverse directions.

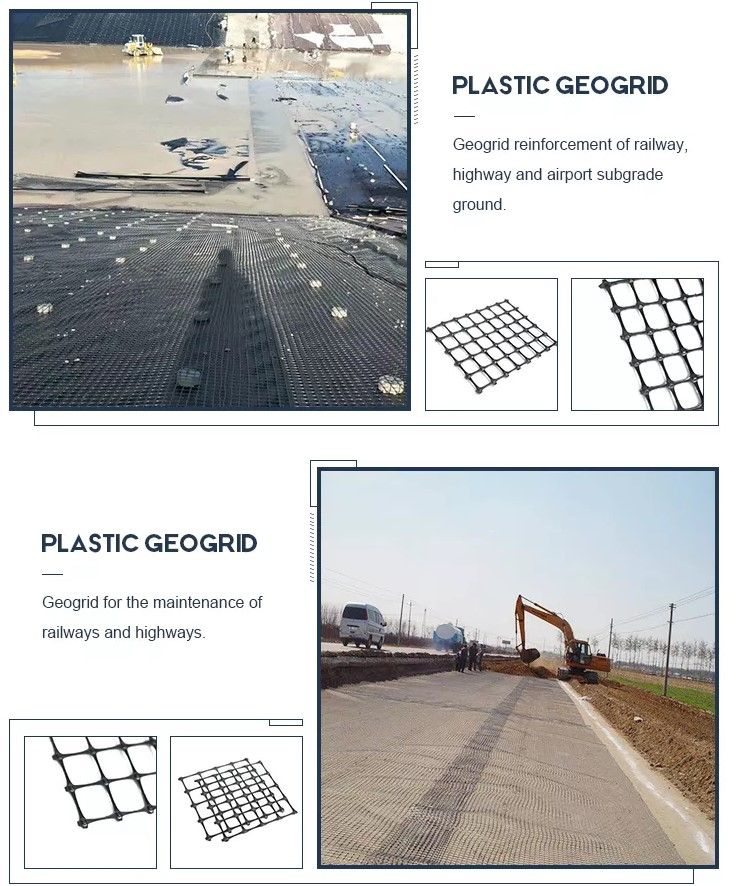

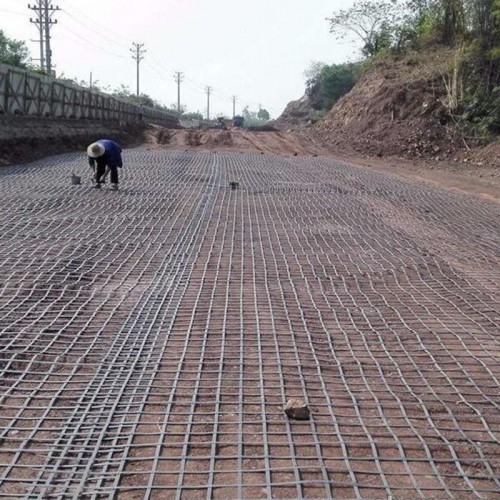

This structure provides an ideal interlocking system for more effective force bearing and diffusion in the soil, and is suitable for foundation reinforcement of large permanently loaded areas.
| Item | Properties | Units | MD Values1 | XMD Values1 |
| 1 | Aperture dimensions2 | mm (in.) | 25 (1.0) | 33 (1.3) |
| 2 | Minimum rib thickness2 | mm (in.) | 0.76 (0.03) | 0.76 (0.03) |
| 3 | Tensile strength at 2% strain3 | kN/m (lb/ft.) | 4.1 (280) | 6.6 (450) |
| 4 | Tensile strength at 5% strain3 | kN/m (lb/ft.) | 8.5 (580) | 13.4 (920) |
| 5 | Ultimate tensile strength3 | kN/m (lb/ft.) | 12.4 (850) | 19.0 (1,300) |
| Structural Properties | ||||
| 6 | Junction efficiency4 | % | MD Values1 | |
| 7 | Flexural stiffness5 | mg-cm | 250.000 | |
| 8 | Aperture stability6 | m-N/deg | 0.32 | |
| Durability | ||||
| 9 | Resistance to installation damage7 | %SC/%SW/%GP | 95/93/90 | |
| 10 | Resistance to long term degradation8 | % | 100 | |
| 11 | Resistance to UV degradation9 | % | 100 | |
| Dimensions | ||||
| 12 | Roll sizes | m (ft.) | 3.0 × 75.0 (9.8 × 246); 4.0 × 75.0 (13.1 × 246) | |
1. Increase the bearing capacity of the foundation and prolong the service life of the foundation.
2. Prevent the ground from caving in or producing cracks, and keep the ground beautiful and neat.
3. Convenient construction, save time and effort, shorten the construction period and reduce maintenance cost.
4. Prevent culverts from cracking.
5. Enhance soil slope and prevent soil erosion.
6. Reduce the thickness of bedding layer and save the cost.
7. Support the stability of slope vegetation mesh mat greening environment.
8. It can replace metal mesh and be used for false roof mesh in underground coal mine.
