Composite PP Biaxial Geogrid With Pet Nonwoven Geotextile For Driveway Subgrade Construction Filtration

Typical Uses:
Anti-cracking reinforcement in asphalt
Reinforcement of joints
Overlays to old concrete roads
Reinforcement of asphalt layers in hydraulic engineering and landfill

Description:

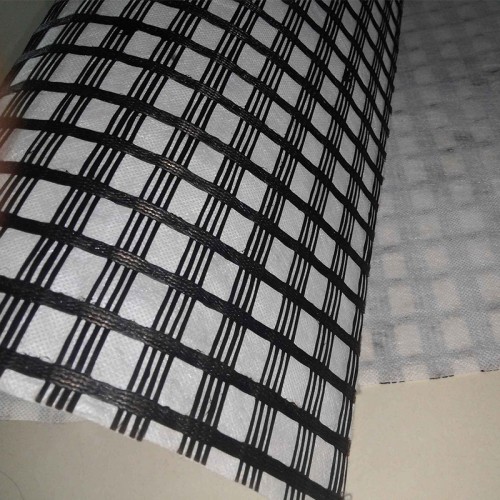

Composite Geogrid Product Description

composite geogrids is the composite of fiberglass geogrid combined with nonwoven fabric or geotextile. It installed between two asphalt layers, the main function is to reduce reflective and fatigue cracking, reduce rutting, extend pavement structural life.
composite geogrids: 25*25KN, 30*30KN, 40*40KN, 50*50KN, 60*60KN, 80*80KN, 100*100KN, 120*120KN
Nonwoven fabric: 80g/ 100g/ 200g
Or do customerised as per your requirements.
Polyester Reinforcement Grid with Nonwoven Geotextile
Polyester Reinforcement Grid with Nonwoven Geotextile

Typical Uses:
Anti-cracking reinforcement in asphalt
Reinforcement of joints
Overlays to old concrete roads
Reinforcement of asphalt layers in hydraulic engineering and landfill

The products has high intensity, low elongation ratio, thermostable, high module, light weight, good toughness, anti-corrosive, long life and so on characteristics, and can be applied in the old cement road surface, runway's service, the dike, the river bank, the side slope protection, project domains and so on road bridge connection surface enhancement processing. It can reinforce the road surface and prevents the road surface rut fatigue cracking the hot-cold expansion crack and the following reflection crack, and can scatter the road surface bearing stress, extense road surface service life, the high tensile strength and the low elongation ratio, no long-term slow change. The physical chemistry stability and hot-stability are good, anti-weary dehiscence, anti-low temperature shrinkage crack and postpone reduction reflection crack.



Specification

WTF

30-30

WTF

50-50

WTF

80-80

WTF

100-100

WTF

120-120

WTF

150-150

WTF

200-200

WTF

300-300

Mesh size(mm)

25.4×25.4  or 12.5×12.5 or 50.8×50.8

Breaking strength(kN/m)

Warp direction

30

50

80

100

120

150

200

300

Across warp

30

50

80

100

120

150

200

300

Elongation at break(%)

Warp direction

4

Across warp

4

Thermal tolerance(ºC)

-100~280

Width≤(m)

6

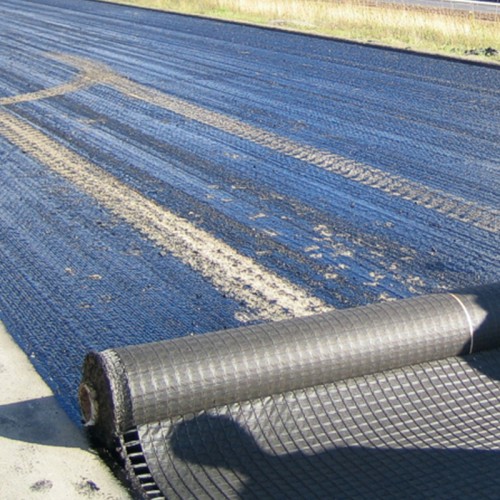

Application
1.It reinforces old asphalt concrete road surface and asphalt surface layer, and prevents damage;
2.It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection crack caused by lock contraction;
3.It is used in road expansion and improvement project and crack caused by old combination position and uneven sedimentation;
4.It is used in soft soil base reinforcement treatment, is favorable for soft soil water separation and concretion, restrains sedimentation effectively, distributes stress uniformly and improve overall strength.
5.It is used for prevention contraction crack caused by new rode semi-rigid base layer, and reinforcing and preventing road surface crack used by foundation crack reflection.

Polyester Reinforcement Grid with Nonwoven Geotextile
Polyester Reinforcement Grid with Nonwoven GeotextileFAQ:

Q:Can you send samples?
A:Yes,we are very happy to provide you with free samples to check the quality of our products.

Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 miion yuan. It is a professiona lmanufacturer of geomembrane,geotextile,geogrid and other products.So we have the competitive price with best quality.

Q:Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer,OEM and ODM are both welcome.

Q:How long is the delivery time?
A: General within 3-7days after received the deposit.

Q: How to control product quality?
A: Our factory adopts lean management,products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping.
