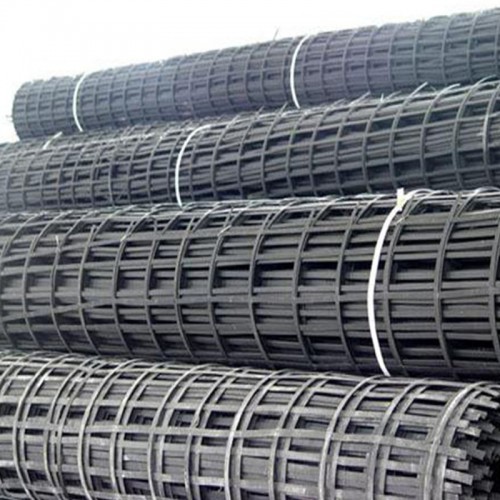

Building Materials Plastic Steel Geogrid
·Steel Plastic Geogrid has breakthrough strength compared to the traditional geogrid:
·When the bidirectional strength is used on the surface of the plastic, the rid is pressed into rough pattern to reinforce the roughness of geogrid surface, increase the friction factor between the geogrid and soil.
·This geogrid is low cost and easy to construct, easy to pave, lap, locate, avoid the repetition and cross, so shorten the construction period obviously.
Description:
Steel Plastic Biaxial Geogrid for Construction

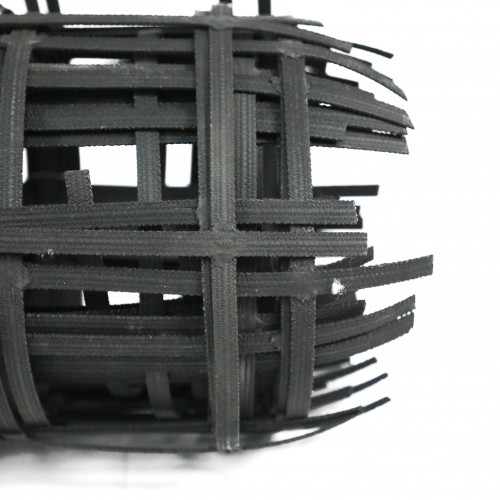

·The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
· The products are applied widely in railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.
Biaxial geogrids have been utilized in pavement construction and soil stabilization projects throughout the worldwide.Biaxial Geogrid is Strata's innovative geogrid that is made from extruded polypropylene which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of paved and unpaved roads.
·The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
· The products are applied widely in railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.
Biaxial geogrids have been utilized in pavement construction and soil stabilization projects throughout the worldwide.Biaxial Geogrid is Strata's innovative geogrid that is made from extruded polypropylene which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of paved and unpaved roads.
Technical Parameter :
High-strength steel plastic uniaxial (vertical) geogrid
High-strength steel plastic uniaxial (vertical) geogrid
| Project | TGDG30 | TGDG50 | TGDG80 | TGDG100 | TGDG120 | TGDG150 |
| Vertically Limited-Rally (KN/m)≥ |
30 | 50 | 80 | 100 | 120 | 150 |
| Vertically Limited elongation ratio(%)≤ | 3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ | 23 | 38 | 63 | 81 | 98 | 125 |
High-strength steel-plastic biaxial( vertical and horizontal) geogrid
| Project | TGSG30-30 | TGSG45-45 | TGSG60-60 | TGSG80-80 | TGSG100-100 | TGSG120-120 |
| Two-way Limit-Rally (KN/m)≥ |
30 | 45 | 60 | 80 | 100 | 120 |
| Two-way Limit elongation (%)≤ |
3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ |
23 | 36 | 48 | 63 | 81 | 98 |
Biaxial Geogrids provide structural reinforcement of roads and parking areas through excellent stiffness and interlock capabilities.
Feature:
Steel Plastic Geogrid has breakthrough strength compared to the traditional geogrid:
·When the bidirectional strength is used on the surface of the plastic, the rid is pressed into rough pattern to reinforce the roughness of geogrid surface, increase the friction factor between the geogrid and soil.
·This geogrid is low cost and easy to construct, easy to pave, lap, locate, avoid the repetition and cross, so shorten the construction period obviously.
High strength, small creep deformation, suitable for various environmental soils.
Improve the interlocking and the occlusion of the reinforcement supporting surface
Application

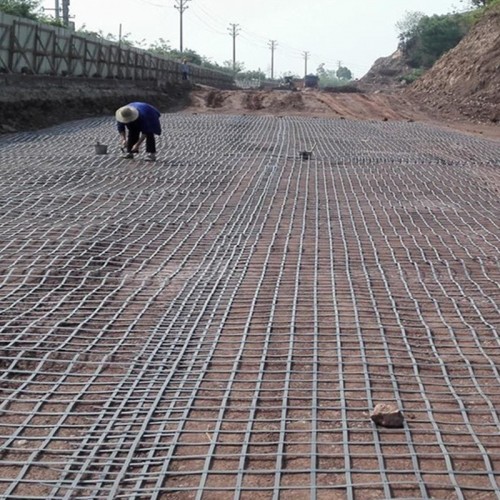

1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;
2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
Geogrid Advantage
1. fast and an all-weather installation solution
2. construction of cost effective
3. Solutions for slope protection
4. Ability to reinforce any soil type
5. Low creep under constant load
6. High modulus
7. Easy to install
8. High pull out resistance
9. Excellent survivability to construction stresses
10. Excellent soil-to-soil and aggregate-to-aggregate contact through large grid openings.
Anhui zhonglu is a leader in geosynthetic products manufacturing with registered capital more than $50 million and factory area of 30,000 square meters. The main varieties of products are HDPE / LDPE pond liner, Plastic Grass Grids, Woven/ nonwoven Geotextile, Drainage Board, Composite Membrane and Textile, Plastic netting, 3D Planting Geomat, and other geosynthetic products.
· The company has imported advanced testing equipment from abroad, with first-class technology and first-class testing method, to provide customers with high-quality and safe products and services.
· The company attaches great importance to the control of product quality, continuous improving production process and customer service. Our product performance testing and analysis are in full compliance with international quality testing standards, providing customers with quality products in strict implementation and higher standards to better meet customer's needs.
FAQ
1, What is the difference between uniaxial and biaxial geogrid?
Biaxial geogrids are those that exhibit the same strength in both the machine directions MD and cross-machine directions CMD while uniaxial geogrids exhibit the primary strength in the machine direction with minimal strength, enough to maintain the aperture structure, in the cross-machine direction.
2, How many types of geogrids are there?
There are three different types of geogrids: Uniaxial, Biaxial, and Triaxial . Each one is designed and manufactured for specific construction applications with various tensile strengths.
3, Are you trading company or manufacturer?
We are factory.
4,Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
5,Can you do OEM?
Yes, of course. We can produce the products as your request.
6, Do you provide samples? is it free?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
7,How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
8, What is your terms of payment?
Payment<=5000USD, 100% in advance. Payment>=30000USD, 30% T/T in advance,balance before shipment.
