Building Material Geosynthetics White Filtration Dam Liner Geotextile With Low Price
Polypropylene filament geotextile adopts advanced spinning equipment, the monofilament fineness can reach above 11dex, the strength can reach above 3.5gd, the mesh is evenly laid without cloud spots, the vertical and horizontal strength and elongation are consistent, and the product performance is more uniform and stable.
Description:
Product Description
Polyester Filament Needle Punched Geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Nonwoven Geotextile punch together to get the stable 3D with highter strength fabric . so Nonwoven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.

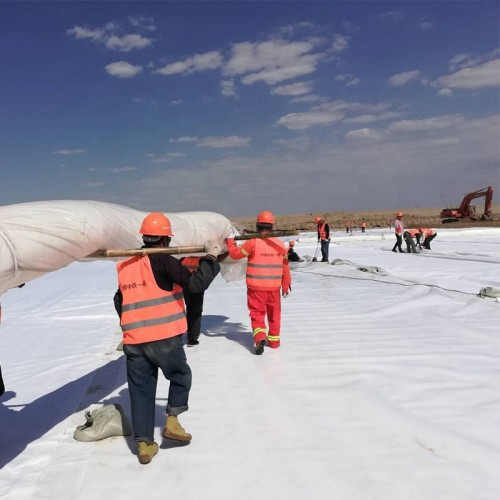

Polyester Filament Needle Punched Geotextile sed to separate,filter,reinforce, protect or drain.Geotextiles are commenly used to separate layers like clay and drainage and to protect liner from damage.
Product Parameters
| Non-woven Geotextile Technical Parameter (GB standard) | |||||||||
| Item | unit | Standard Specification | |||||||
| 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | ||
| Thickness≥ | mm | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 |
| width Deciation | % | 0.5 | |||||||
| Breaking strength | KN/M | 2.50 | 4.50 | 6.50 | 8.00 | 9.50 | 11.00 | 12.50 | 14.00 |
| Breaking Elongation | % | 25-100 | |||||||
| Weight Tolerance | g/m² | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 |
| CBR Tear Strength≥ | KN | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 |
| Tear Strength≥ | KN | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 |
| Vertical Permeability | N/5cm | Kx(10﹣¹-10﹣³) | |||||||
| EOS 090 | mm | 0.07-0.2 | |||||||

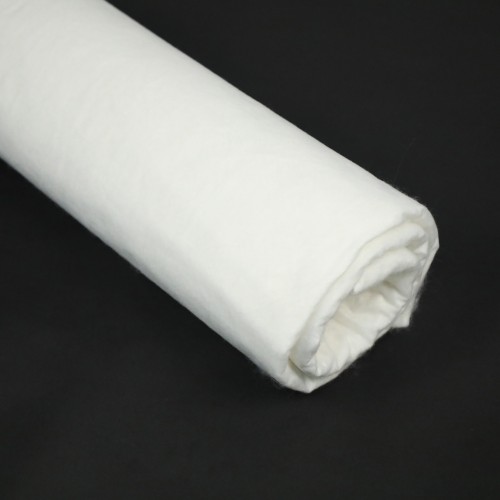

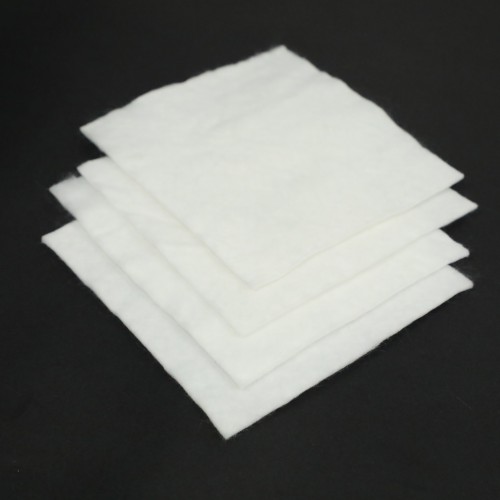

Detailed Photos
