Black Permeable Plastic Grass Pavers Grass Protection Grid Grass Pave Grids For Parking Lots

Grass grid uses a modified high molecular HDPE and PP as raw material, Material adopt high pressure injection forming technology to suppress the nest bee continuous shell, three-dimensional space and certain support height and strength, green environmental protection, completely Recyclable. It realizes a perfect combination of parking lots with lawn. Grass paver has good properties pressure-resistant, abrasion resistance, impact resistance, aging resistance, corrosion resistance, etc. It enhances the quality and saves investment. The flat lapping type is unique. It can save labor, fast, telescopic joint regulation.

Description:

Products Description
Black Permeable Plastic Grass Pavers Grass Protection Grid Grass Pave Grids For Parking Lots
Grass grid uses a modified high molecular HDPE and PP as raw material, Material adopt high pressure injection forming technology to suppress the nest bee continuous shell, three-dimensional space and certain support height and strength, green environmental protection, completely Recyclable. It realizes a perfect combination of parking lots with lawn. Grass paver has good properties pressure-resistant, abrasion resistance, impact resistance, aging resistance, corrosion resistance, etc. It enhances the quality and saves investment. The flat lapping type is unique. It can save labor, fast, telescopic joint regulation.








Details Images
Products Advantage

-Impact resistant, anti-aging, anti-UV
-Abrasion and corrosion resistance, good flame retardancy, strong grass planting function
-Reduce ground reflection, reduce ground heat radiation
-Reduce the ground acoustic transmission, reduce noise pollution
-Reduces dust and purifies air
-Natural seepage of rainwater, no loss of soil, no waterlogging
-Natural circulation of water, air and fertilizer, no soil caking
-Increases green area
-Simple construction and light weight
-Free combination and disassembly, reusable
-Can withstand a weight of over 300T/m2

Technical Index
Grass Grid Technical Parameter (GB standard)
Prodcut name
Plastic Grass Grid
Model
GPP-38
GPP-48
GPP-68

size(mm)
500*500*38

500*500*48

500*500*68
525*455*38
Pressure Strength
200ton/sqm-250ton/sqm
Material
HDPE(High-desity polyethylene)
Product Type
Virign material and Recycled Material
Durability
at least 4 years in natural ground of 4
Working Temprature
Apply in temperature of -10℃tp 50℃
Anti HCL
30%x24h,no visible change
Thermal Aging
70ICX24h,no visible change
Anti UV
UPE>30T(UVA)AV
Grass Grid Application

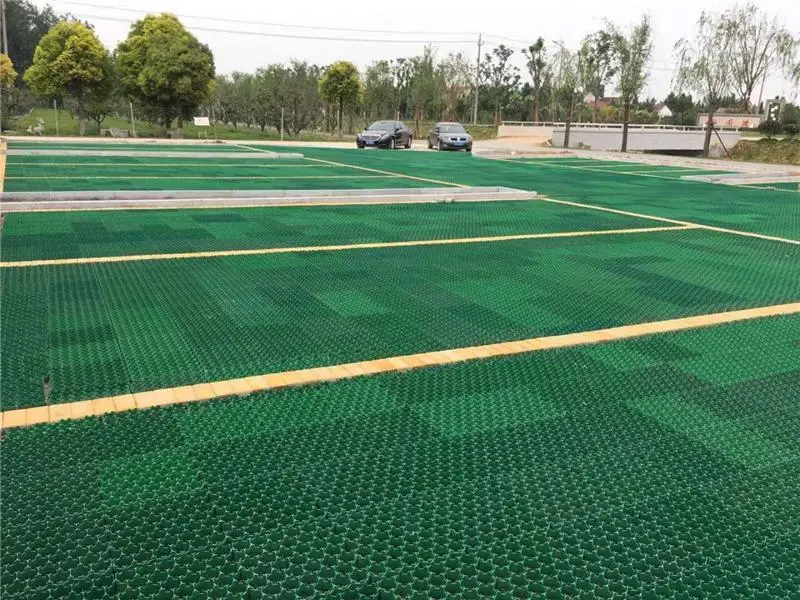

1) Parking Lots (Grass or Gravel) & Overflow Parking
2) Make reinforcement treatment for soft soil foundation
3) Protect steep slope
4) Used in highway, railway, airport, wharf
5) Especially in air-slaked mountain, desert and swamp land etc.
