0.5mm 1mm 1.5mm 2mm Hdpe Geo Membrane Geomembrane Dam Fish Farm Tank Pond Liner

Geomembrane Main Features

1.Waterproof and impermeable
2.UV resistance
3.High tearing resistance
4. Puncture-resisting
5.Nontoxic,non-tasteness.Long life:over 100 years underground without sunlight.

Description:

Geomembrane Introduction

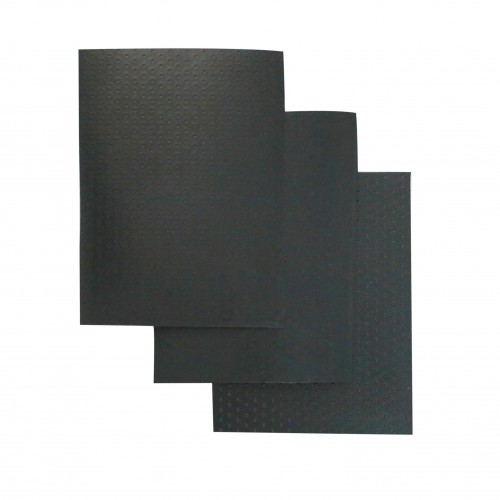

Geomembrane is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications. zhonglu smooth geomembrane HDPE liner is made of finest quality high density polyethylene HDPE with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.

View File

Product Parameters

HDPE Geomembrane Technical Parameter (GB standard)
Spec
Properties
GMS0.5
GMS0.75
GMS1.0
GMS1.25
GMS1.5
GMS2.0
GMS2.5
Thickness
0.5mm
0.75mm
1.0mm
1.25mm
1.5mm
2.0mm
2.5mm
Tensile Properties
(each direction) (≥)
.yield strength
.break strength
.yield elongation
.break elongation


7KN/m
10KN/m
--
600%


10KN/m
15KN/m
--
600%


13KN/m
20KN/m
11%
600%


16KN/m
25KN/m
11%
600%


20KN/m
30KN/m
11%
600%


26KN/m
40KN/m
11%
600%


33KN/m
50KN/m
11%
600%
Density(≥)
0.940g/cc
0.940g/cc
0.940g/cc
0.940g/cc
0.940g/cc
0.940g/cc
0.940g/cc
Puncture Restistance (≥)
120N
180N
240N
300N
360N
480N
600N
Carbon Black Content
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
2.0-3.0%
Carbon black Dispersion
Noted(1)
Noted(1)
Noted(1)
Noted(1)
Noted(1)
Noted(1)
Noted(1)
Tear Resistance (≥)
56N
84N
115N
140N
170N
2255N
280N
Oxidative Induction Time(OIT)
Standare OIT(≥)

60min.

60min.

60min.

60min.

60min.

60min.

60min.

Product Application

1. Such as landfill, sewage treatment plant, power plant regulating tank, industrial and hospital solid waste, etc;
2. LDPE anti-seepage membrane is applicable to water conservancy projects: such as anti-seepage, plugging, reinforcement of rivers, lakes, reservoirs and dams, anti-seepage of canals, vertical core walls, slope protection, etc;
3. HDPE anti-seepage membrane in Municipal Engineering: subway, underground engineering of buildings, planting roof, roof garden and sewage pipe anti-seepage;
4. Polyethylene anti-seepage membrane is applicable to gardens: artificial lakes, rivers, reservoirs, pond bottoms of golf courses, slope protection, waterproof and moisture-proof of green lawns, etc;
5. HDPE geomembrane is applicable to petrochemical: chemical plant, refinery, anti-seepage of oil storage tank, lining and secondary lining of chemical reaction tank and sedimentation tank;

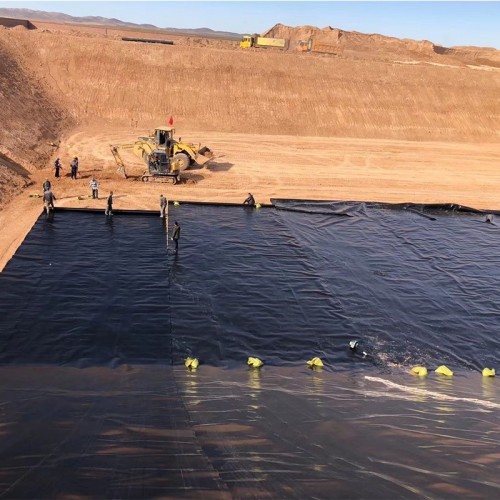

6. Polyethylene geomembrane is applicable to mining industry: anti-seepage of bottom lining of washing tank, heap leaching tank, ash yard, dissolution tank, sedimentation tank, storage yard and tailings;
7. Low density polyethylene film is applicable to traffic facilities: foundation reinforcement of highway and anti-seepage of culvert;
8. LDPE anti-seepage membrane is applicable to agriculture: anti-seepage of reservoirs, drinking water pools, water storage ponds and irrigation systems;

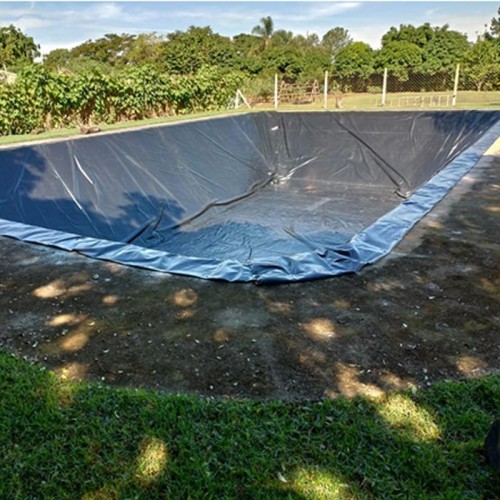

9. HDPE membrane is suitable for aquaculture: intensive and industrialized aquaculture ponds, fish ponds, lining of shrimp ponds, sea cucumber ring slope protection, etc;
10. High density polyethylene impermeable film is applicable to salt industry: salt crystallization pool, brine pool tarpaulin, salt film, salt pool plastic tarpaulin
